Single Length Golf Clubs

What are single length clubs?

As the name implies, single length clubs are a set of golf clubs where all the irons (but not the hybrids and woods) are the same length.

I first started dabbling with the notion of a set of irons that were all the same length long before the Internet was prominent.  Back then (late 70’s early 80’s) there were very few, if any, good sources of information on the topic so basically I reverted to the tried and true method called experimentation.

What caused me to start down that road was a realization that I think all golfers come to at some point in time, that being: there are one or two irons in the set that you hit much better than the other irons in the set.

For most golfers, that one favorite club that feels better and results in better shots is the 7 or 8 iron and in some cases the 6 iron.  I’ve heard many golfers say, “if I could just hit the rest of my clubs like I hit my  seven iron, I’d be a pretty good player”.

Back then I did not understand much about swing planes, and had only a rudimentary understanding of the prevailing principles of golf club construction.

To address this issue I decided I needed to get some instructional material about how major manufacturers assembled golf clubs and the principles they employed so I purchased some books on golf club assembly.  Before I knew it, I was  assembling golf clubs at first for my own use and soon thereafter for friends and fellow golfers.

Traditional golf club length and head weight

Traditional golf club assembly principles dictate that clubs are progressively longer through the set.  Wedges start around 35 to 35.5 inches in length and then each club is built 1/2 inch longer so by the time you get to a 3 iron it is around  39 inches long.

To accommodate these changes in club length the lie angles change starting around 64 degrees for wedges and progressing to  59 degrees for a 3 iron.  The head weights also change starting around 300 grams for a sand wedge and arriving by increments at 230 grams for a 3 iron.  In theory the difference in head weight and shaft length from a wedge to a 3 iron should result in a set of clubs that all ‘feel’ the same.  The shafts are ‘tipped’, which means shaft material is removed from the lower end of the shaft to make them progressively stiffer as the heads get heavier.

Mass Produced Single Length Clubs

In 1986 the Tommy Armour Golf Company produced a set of clubs called EQL (equal length).  These clubs featured a head very similar to the Armour 845’s which were popular at the time.  The difference was all the heads weighed around 260 grams and all the irons were the  length of a 6 iron.  Because the idea of single length irons was considered too radical a departure from the norm, Armour was not able to get any prominent professionals to play or endorse the clubs.  As a result the idea was scrapped and production was halted.

The EQL irons were inspired in large part by Moe Norman’s swing.  Norman, who used a single plane swing, choked down on most of his irons to the point where he was in reality hitting what amounted to single length irons.

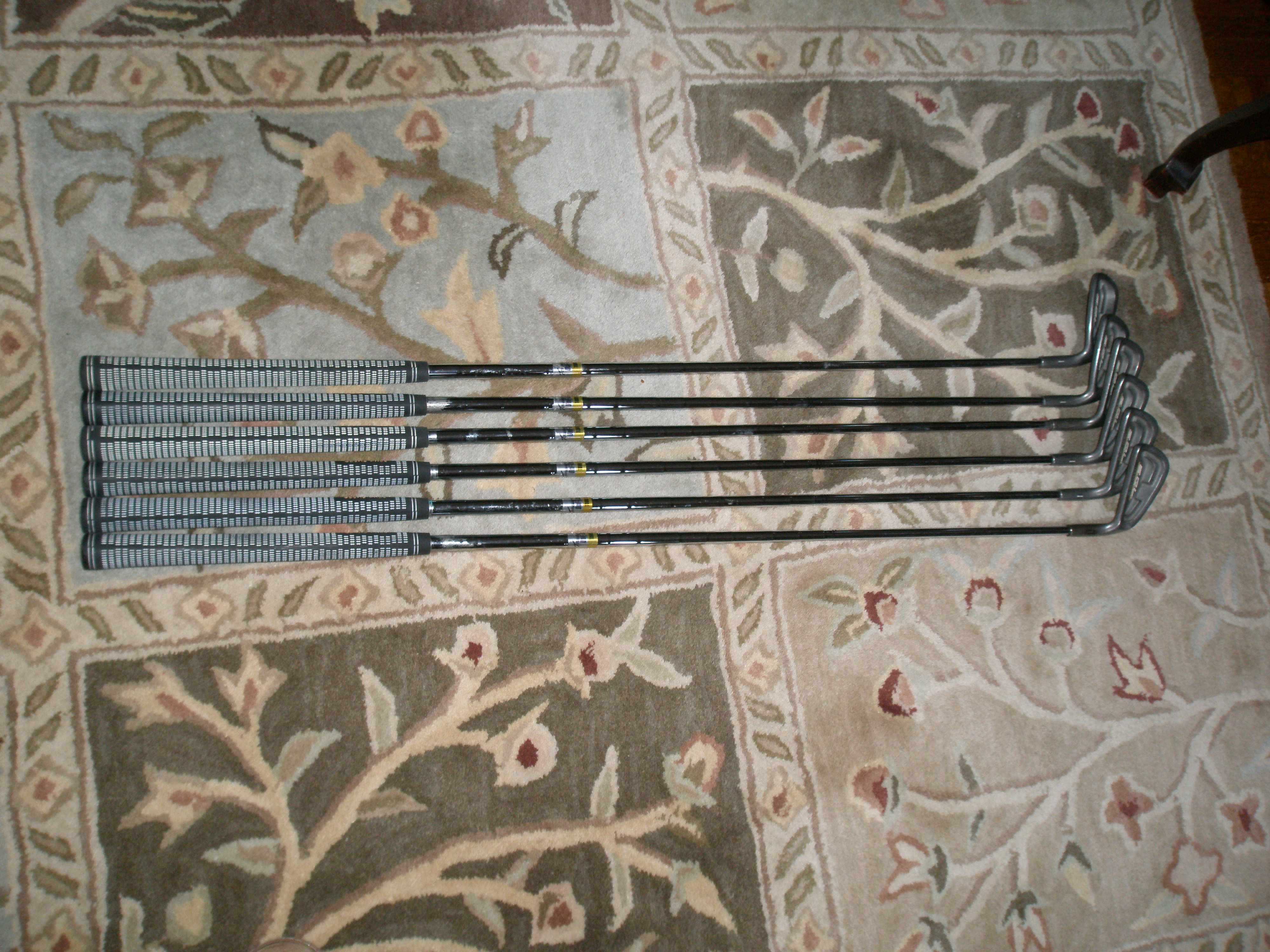

I have a set of EQL’s and they are pictured below.



OLYMPUS DIGITAL CAMERA





EQL2Although I have played these clubs with some success I was never a fan of the  offset Armour 845 heads.

My Winter Project

Being a fan of Bryson DeChambeau who uses not only single length clubs, custom-made for him by Edel Golf but also a single plane swing, I have decided I need to build myself a set of new single length irons.  Although you can now purchase custom-made single length irons the cost is substantial.

I have settled on Pinhawk heads.  They are available from flop wedge through 4 iron (with an optional 4 hybrid) with a lie angle of 62.5 degrees and a head wight of 272 grams throughout the set.  The head I have selected is pictured below.

pinhawk-sl-single-length-irons (1)

I will keep you posted.

Advertisements

5 thoughts on “Single Length Golf Clubs

  1. Clarke Single

    Hey Menno….we spoke about this concept before during our many rounds of golf together….very interesting….keep up the research…..you could be on to something….

    However….if you start living out of the trunk of your car I’m calling in the authorities !!!! hahaha

    Take care….Clarke Single….struggling golfer

    Like

  2. Menno Zacharias

    Hey Clarke: Did I forget to mention that I’m now living out of the trunk of my car…. well at least my clubs do, year round.

    Like
